Product Number:
SKU: 600 060 000

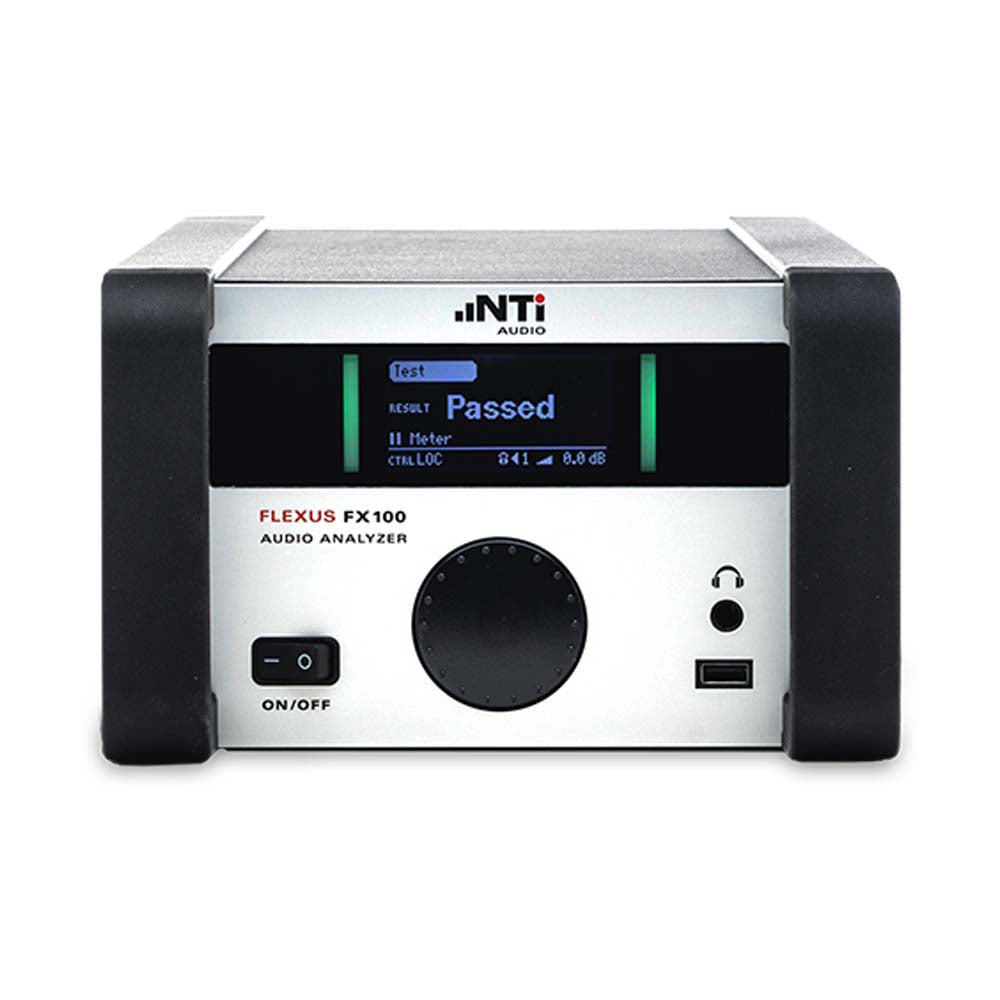

The FX100 is a unique professional audio analyzer that adapts to your application. The instrument offers comprehensive measurements including Pass/Fail tests in under 1 second. Includes FX-Control Suite Software.
Reduce the need for external devices. Just plug the required module(s) into the FX100. (choose up to 3 extra modules)
Additional generator / analyzer channels
On-board amplifier for speaker testing
Digital Audio
Output / Input Switchers
3-D View
Technical specifications
Choose your Microphone
M2010 class 1 microphone
+ $1,640.00
Dynamic range 24–145 dB
M2015 class 1 microphone
+ $1,930.00
Dynamic range 34–155 dB
No microphone
Choose Modules for the 3 Spare Slots
Channel Extension 2 CH -> 4 CH
+ $5,100.00
Extends the FX100 base unit from 2 channels to 4 individual input/output channels. Consists of a Generator PCB and an Analyzer PCB
2 Channels only
included
Add Digital
Digital Audio Module FX-AES
+ $2,720.00
Extends the FX100 with a digital audio generator and analyzer. The sync-input allows the generator clock to be synchronized to an external clock reference.
Analog only
included
Add a Loudspeaker Impedance Module
Speaker Impedance Module FX-SIP
+ $2,080.00
For testing two speakers less than 10 Watts at 8 Ohm simultaneously, or one speaker less than 30 Watts. Includes built in power amplifier.
Speaker Impedance Module FX-SIH
+ $1,285.00
For testing one speaker over 2 Watts at 8 Ohm. Requires external power amplifier.
No Impedance Testing
Add an Amplifier Testing Module
D-ClassAMP Filter Module FX-DF
+ $1,795.00
Comprises of two analog filters that are linked to the output signals of the amplifier under test. A load (substituting the impedance provided by the speakers in normal operation) is connected to the test system through banana plugs. The filtered signals are automatically routed internally to the two analysis channels.
No Amplifier Testing
Add an Input Switcher
Input Switcher Module FX-IS
+ $1,385.00
Switch between 4 additional input channels.
No Additional Input Channels
Add an Output Switcher
Output Switcher Module FX-OS
+ $1,385.00
Switch between 4 additional output channels.
No Additional Output Channels
