XL3 Acoustic Analyzer

Name: XL3 Acoustic Analyzer
Brand: NTi Audio
SKU: 600 000 700
Price: 3340.00 USD
Availability: InStock

Choose your Microphone

M2230 Certified class 1 microphone (IEC61672) + $2,005.00 Dynamic range 16–137 dB
Designed for regulatory compliance measurements in environmental noise and building acoustics M2340 Certified class 1 microphone (IEC61672) + $2,230.00 Dynamic range 17–138 dB with self-check
Designed for regulatory compliance measurements in environmental noise, building acoustics and long-term monitoring M2211 class 1 microphone + $1,625.00 Dynamic range 21–144 dB
Designed for all standard noise measurement applications that do not require metrological certification M4262 class 2 microphone + $680.00 Dynamic range 27–146 dB
Cost-effective microphone for general sound level testing, commissioning and service of audio-acoustic installations M2215 class 1 specialized microphone + $1,965.00 Dynamic range 25–153 dB
Designed for high sound pressure level measurement applications that do not require metrological certification M2914 class 1 specialized microphone + $4,550.00 Dynamic range 6.5 dBA–103 dB
Designed for low sound pressure level measurement applications that do not require metrological certification.

Requires accessory ICP Adapter ASD for operation with XL3 No microphone

Include a Calibration Certificate

Yes + $225.00 Recommended

Calibration of the meter + mic pair, plus a calibration certificate (paper, mailed to you). This is only available with the purchase of a new XL3 and a microphone No

Choose your Device Option and Reporting Software

Environmental Noise Bundle + $1,995.00 Extended Noise Measurement Option on the Device

100ms logging resolution
time weighting
broadband and spectrum percentile statistics
display sound exposure level (LAE)
event-triggered data recording

Data Explorer PC Software

A powerful data processor for easy and fast analysis of sound level measurement data.
Provides a convenient way to view and manage your data and quickly create customized reports.

Sound Insulation Bundle + $2,335.00 Sound Insulation Option on the Device

Airborne and impact sound measurement
re-use measurements
⅓ octave RT to up to 10kHz
automated averaging repeat measurements

Sound Insulation Reporter PC Software

Provides all the standard reports for Airborne, Impact and Facade sound insulation measurements.
Designed for acoustic consultants, this comprehensive tool uses data gathered by the Acoustic Analyzer, and quickly returns graphical analysis for all measurement positions.

Room Acoustics Bundle + $1,285.00 Extended Room Acoustics Option on the Device

⅓ octave band up to 10kHz
Early Decay Time (EDT)
T15/20/30 simultaneously
minimum trigger levels

Room Acoustics Reporter PC Software

Automatically generates reverberation time measurement reports and analyzes the frequency response spectrum.
Supports acousticians and experts in the visualization and detailed evaluation of measurement data recorded with the Acoustic Analyzer.

None

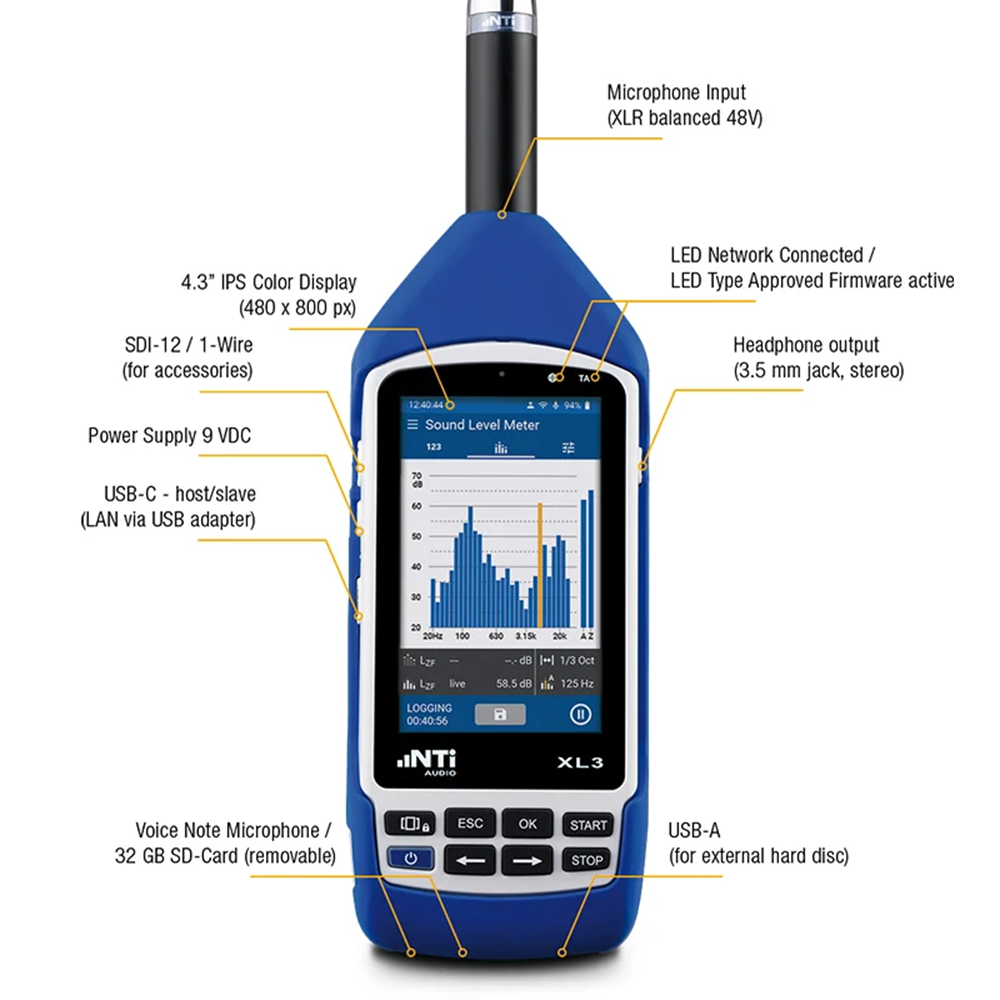

The XL3 Acoustic Analyzer is a Class 1 professional sound level meter designed for precision noise measurement, room acoustics, and building acoustics applications. With a high-resolution touch display, web connectivity, and extensive analysis tools, it enables acoustic specialists to reliably capture and analyze environmental sound data.

The XL3 is dedicated to noise measurements, room acoustics and building acoustics applications. The intuitive user interface is optimized for basic noise monitoring applications as well as offering extensive analysis tools for professionals. The sound level meter is fully networked and allows operation and data access from any mobile device.

Includes: power supply, battery pack, USB-C cable; supports Wi-Fi.

Add USB-C to LAN Adapter for LAN connection

Technical specifications
