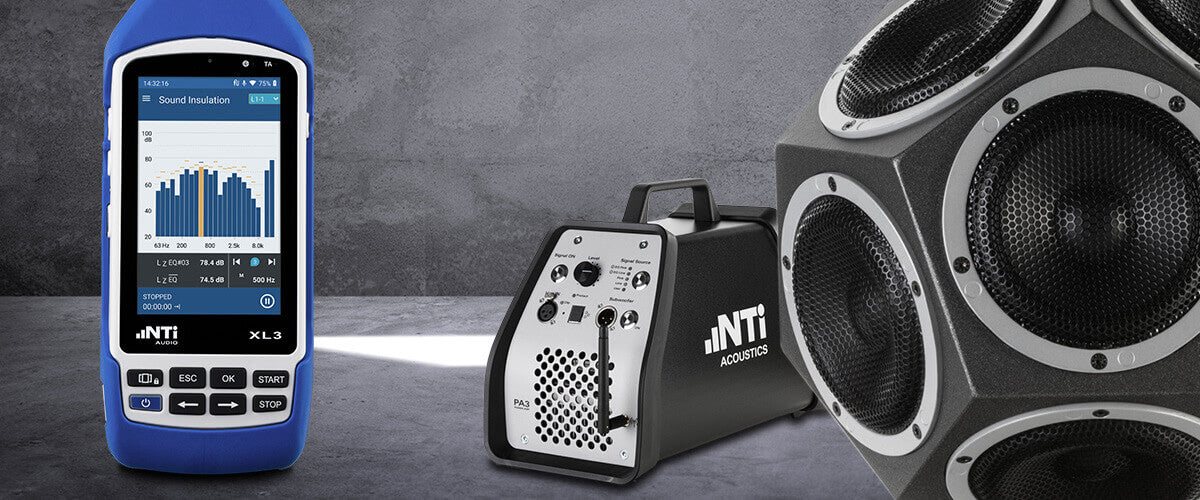

The building acoustics kit consists of the omnidirectional DS3 Dodecahedron Speaker, PA3 Power Amplifier, the XL3 Sound Level Meter, and the Sound Insulation Reporter PC software. These provide professional airborne, impact and façade sound insulation measurements in accordance with the standards.
DS3 Dodecahedron Speaker
DS3 Dodecahedron Speaker
+ $3,860.00
Lightweight yet powerful remote-controlled sound source for measurement applications in building acoustics. The optimized frequency response ensures precise measurements in accordance with the ISO 16283 and ISO 3382 standards.
Tripod
Tripod for DS3 Dodecahedron Speaker
+ $180.00
Retractable, lightweight tripod with 35 mm pole diameter supplied with carrying bag.
Exclude the tripod
Amplifier
PA3 Power Amplifier
+ $2,790.00
The portable PA3 Power Amplifier contains a DSP-based signal generator with equalizer. In conjunction with the DS3 Dodecahedron Speaker, it generates pink noise with an acoustically-flat frequency response. The equalization meets ISO 16283-1 requirements. Includes a wireless remote control to turn the signal on/off from outside the room.
Exclude the amplifier
Analyzer
XL3 Acoustic Analyzer
+ $3,340.00
A Class 1 professional sound level meter designed for precision measurement. With a high-resolution touch display, web connectivity providing remote control, and extensive analysis tools, it enables acoustic specialists to reliably capture and analyze building acoustics data.
Exclude the Analyzer
Microphone
M2230 Certified class 1 microphone (IEC61672)
+ $2,005.00
Dynamic range 16–137 dB
Exclude the microphone
Microphone windscreen
1/2 Windscreen 90mm
+ $36.00
Exclude the windscreen
Sound Calibrator
Class 1
+ $835.00
Exclude the calibrator
Device Option and PC Software
Sound Insulation Bundle
+ $2,335.00

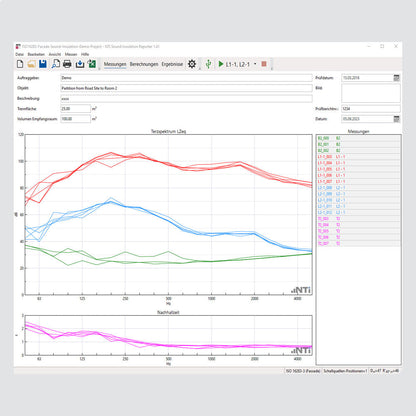

Sound Insulation Option on the Device Enables data import into PC Software. Sound Insulation Reporter PC Software Provides all the standard reports for sound insulation measurements.
Exclude the PC Software
Optional Tapping Machine
TM EOS2 Tapping Machine
+ $5,625.00
A precision noise source designed for impact sound insulation measurements in building acoustics.
Exclude the Tapping Machine
Optional Backpack
Backpack for XL3
+ $180.00
Exclude the Backpack
