XL2 Spectral Limits Option

The Spectral Limits Option extends the XL2 functions to 1/12 octave resolution and allows for noise curve and tolerance analysis.

• FFT & 1/12 octave analyzer: capture and compare tolerance measurements, export and import tolerance files to create tolerance-testing systems

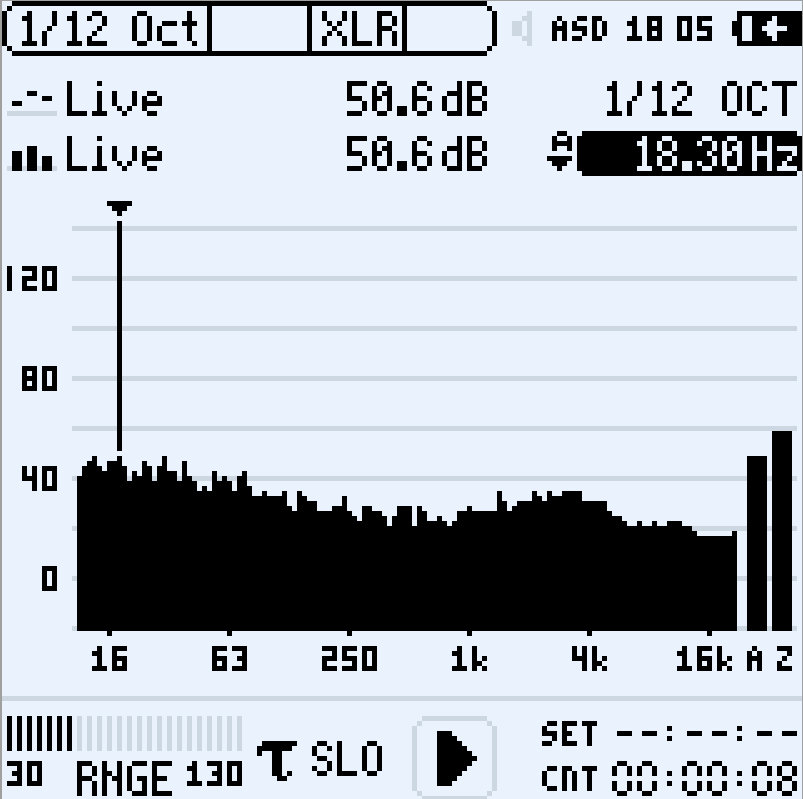

• Selectable 1/1, 1/3, 1/6 and 1/12 octave resolution
• High-resolution zoom FFT up to 0.4 Hz
• True peak level in 1/1 and 1/3 octave resolution

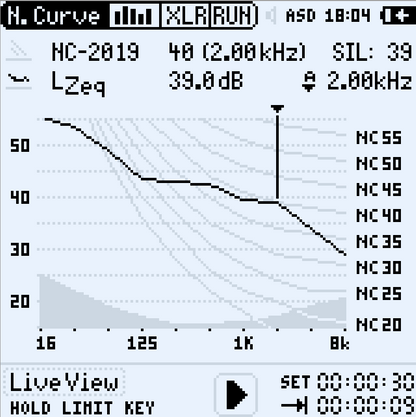

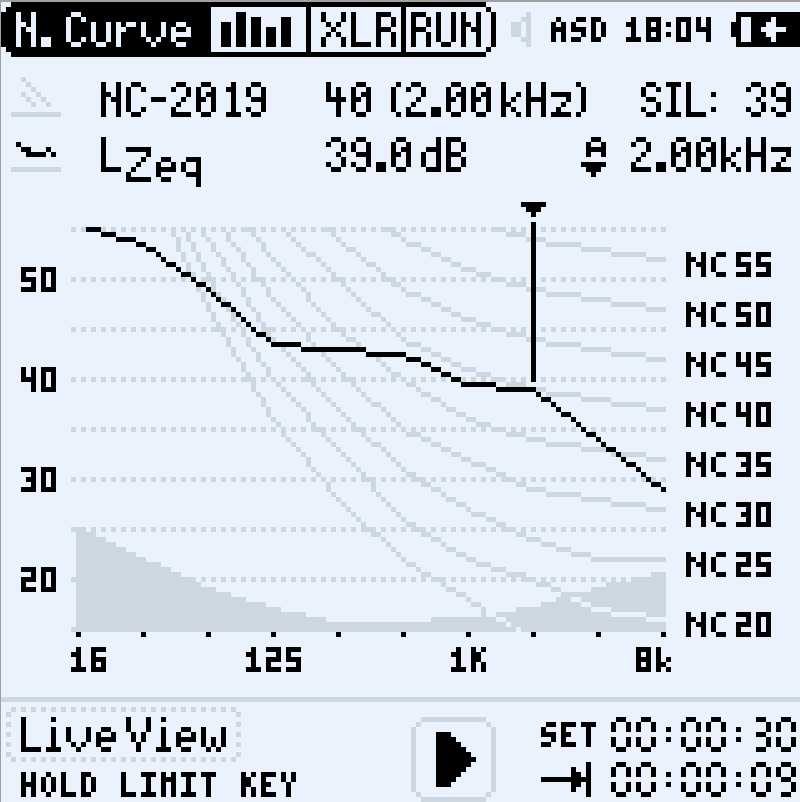

• Noise Curves (ANSI S12.2-2008, -1995 and ISO 1996)

Note: 1/12 octave resolution also enabled in vibration mode if Vibration Option is active

Takes one business day to activate.
